SKU: CS2_M3
Left Hand Switch Assembly Cluster Block | Early for Yamaha - DT | XT | TT | IT | WR
$42.90
RRP $49.90
SAVE $7.00 (14%)
Instock Online Only
Description

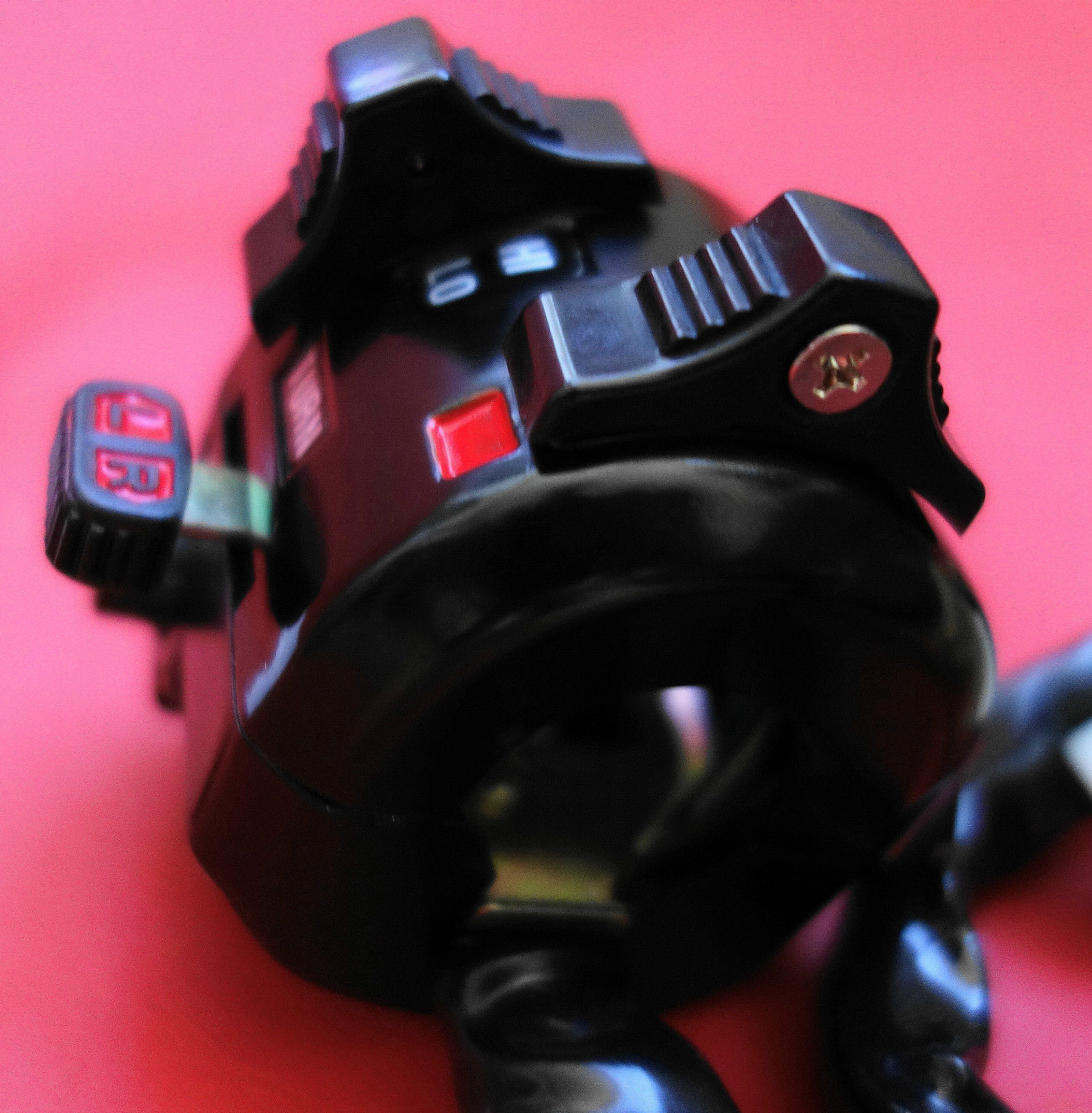

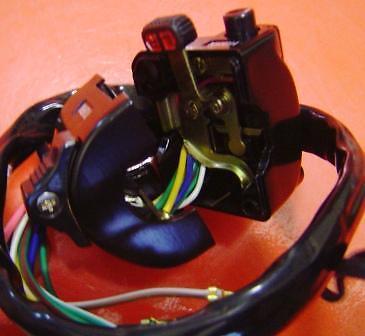

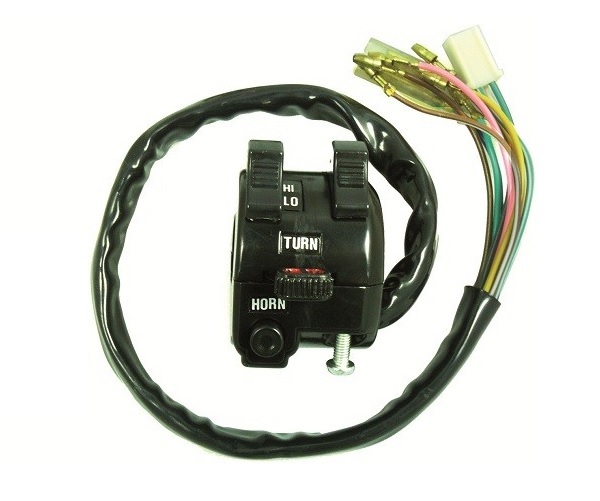

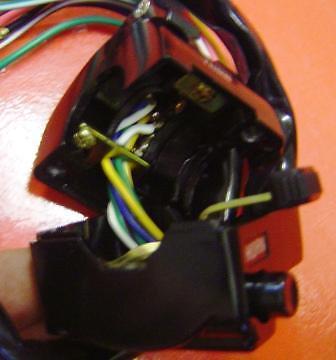

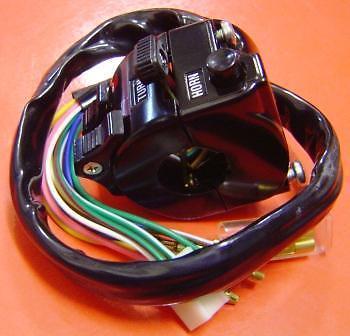

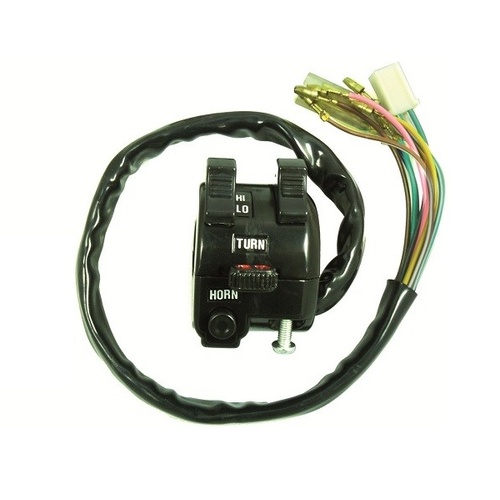

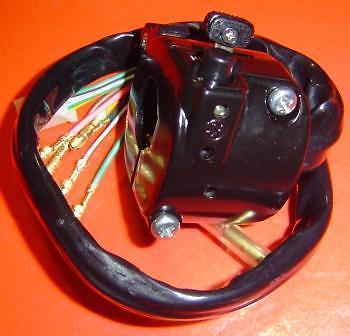

Left Hand Switch Block modeled on early Yamaha
Metal Body
Plastic Coating on outside
Plastic Coating on outside
Covers all the usual functions:
+ Headlight ON/OFF
+Low Beam
+High Beam
+Park Light Switch
+Indicator Switch Left/Right - The indicators do not Self Cancel! No 'Push to Cancel' function
+Horn
Wiring as follows:
+Low Beam
+High Beam
+Park Light Switch
+Indicator Switch Left/Right - The indicators do not Self Cancel! No 'Push to Cancel' function
+Horn
Wiring as follows:
Yellow/White - Power to H/lamp ON/OFF
Green - Low Beam
Shop Now. Pay Later.
Yellow - High Beam
Dark Blue - Parker Lamp /Dash Lamps
Brown / White - Power for flasher Relay
Brown - L/H Flasher
Dark Green - R/H Flasher
Pink - Horn
White to Green/White - H/Lamp Switch Off
White to Green/Red - H/Lamp Switch On
Switch Body is Earth........ Sometimes a separate earth wire will be required - rubber mounted bars for example.
This is a 'Generic' copy of an early Yamaha switch block and some minor rewiring MAY be required.

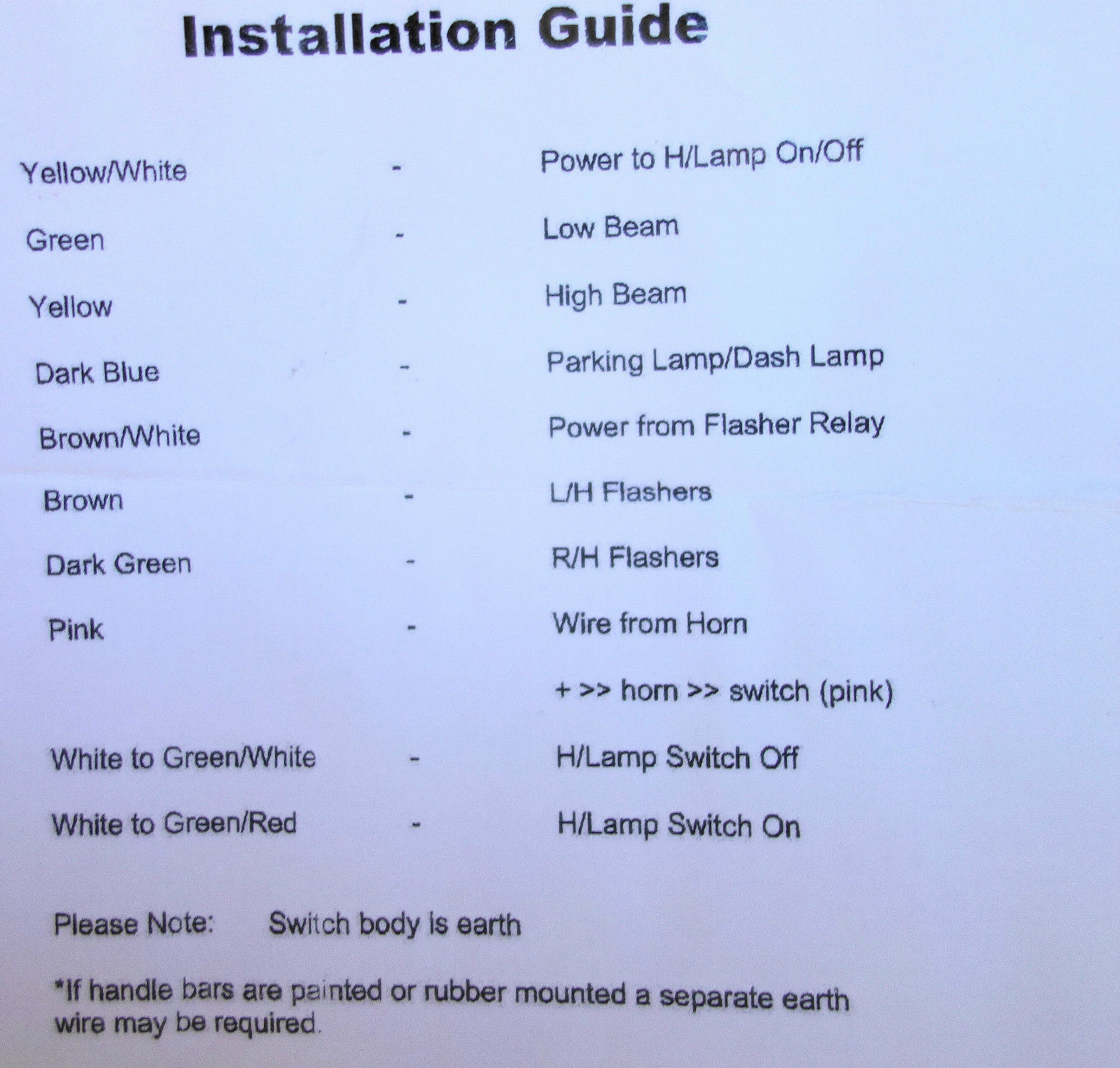

Installation Guide supplied.
Installation Guide supplied.
Tthis Left Hand Switch Block is for 7/8" or 22mm BARS - ie, STANDARD BARS.
NO 1" or 25.6mm Version available.
Specifications
| SKU | CS2_M3 |
| Brand | MCS |
| Shipping Weight | 0.2155kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.050m |
