SKU: CS11

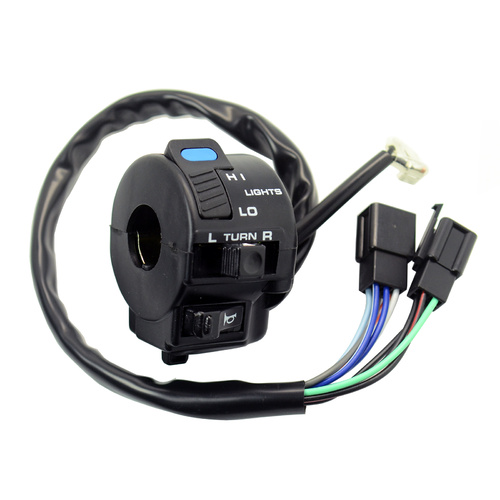

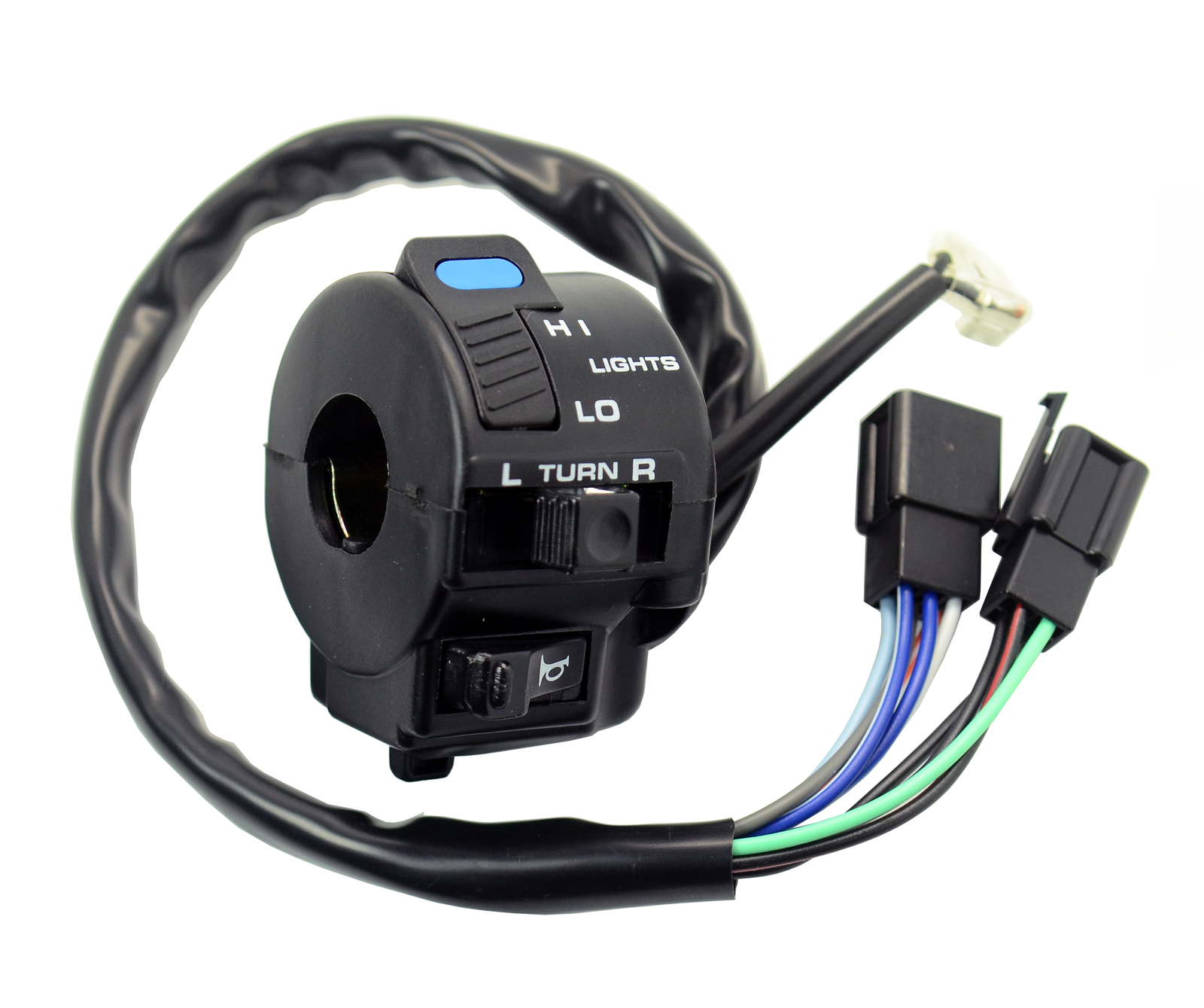

Left Hand Switch Block Assembly | Honda XR Style
Description
- Metal sub frame
- Plastic outer body
- Covers all the usual functions:
- High & low beam
- Indicators
- Horn
- This is a 'generic' copy of Honda switch block, some minor rewiring may be required.
- This left hand switch is for 7/8" or 22mm bars - ie, standard bars. No 1" or 25.6mm version not available sorry
Wiring
Some rewiring MAY be necessary in some applications
- Black/Red - Power to Horn
- Green - Horn Earth
- Grey - Power to Flasher Relay
- Orange/White - Flasher L/H Out
- Light Blue - Flasher R/H Out
- Blue/White - Power to Headlight
- Dark Blue - High Beam
- White - Low Beam
- Black - Clutch Switch
Specifications
| SKU | CS11 |
| Barcode # | 9334437061176 |
| Brand | MCS |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.200m |
