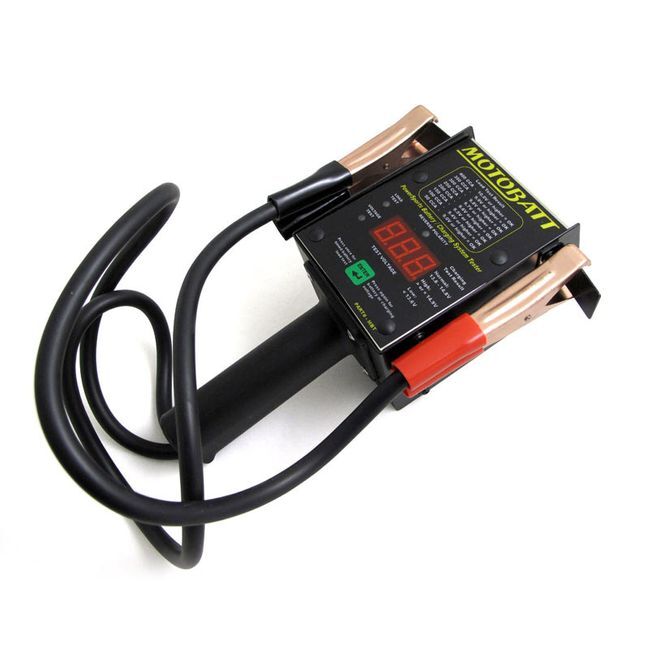

MOTOBATT TESTER MBT FIXED LOAD 12V

Calculate Shipping

Description

Features:
Durable metal housing
True 125A load test
Microprosessor controlled
Reverse polarity indication
Built-in wall hanger
Specifications:
Applicati 12V Battery & 12V Charging Systems
Operating Range: Up to 400 CCA
True Loading Capacity: 125 Amp
Voltmeter: 0 to 15V
Test Type: Timed w/ auto shut off
Display: 3 Character LED & 3 LED indicators
Lead Set: 64cm (25") motorcycle battery clamps
Dimensions: 239 x 86 x 86mm (9.4" x 3.4" x 3.4")
Motobatt chargers utilise Motobatt’s unique 9 Stage Charging and Maintenance Process.

Qualification Phase:
Initially ensures that the battery is in good condition prior to launching charge processing. As a safety measure charge process will not begin if the battery is below 2V.

Battery Rescue Phase:
Motobatt Battery Rescue starts if the battery voltage has risen unusually high in the early portion of the re-charge cycle. This is usually caused by plate sulfation. Once the battery rescue phase has succeeded in getting the battery to accept power, normal battery charging will begin.

Soft Start Phase:
Soft Start is used when the charger has detected a battery at a very low initial state of charge. Voltage and current are delivered at specified rates to help the battery to recover prior to entering Pulse charge mode.

Pulse Mode Phase:
Motobatt Pulse mode provides a high-frequency pulse charge to help the newly recovered battery to continue to accept charge as it enters the reconditioning phase.

Recondition Phase:
The Motobatt reconditioning phase continues to work the battery at a slightly higher voltage and amperage to “re-activate” the battery plates for improved depth of charge and charge acceptance.

Bulk Charge Phase:
With the battery now through Pulse and reconditioning phases and well on its way to full recovery the Motobatt bulk charge phase gives the battery constant current taking the battery up to 80% of its capacity.

Absorption Phase:
In the Motobatt absorption phase, the battery is given constant voltage while the current is reduced based on action taken from monitoring the batteries current state until the battery is 100% charged.

Check Phase:
The battery will now be checked to be sure that it is holding a charge properly and the charger will make a determination and classify the battery for use, or not.

Maintenance Phase:
The battery can be safely left on the charger indefinitely. The unit will monitor the battery and “turn-on” again as needed to maintain the battery at a full state of readiness.
