Ram H/Bar U-Bolt Double Ball Mount W/ Action Camera Adapter

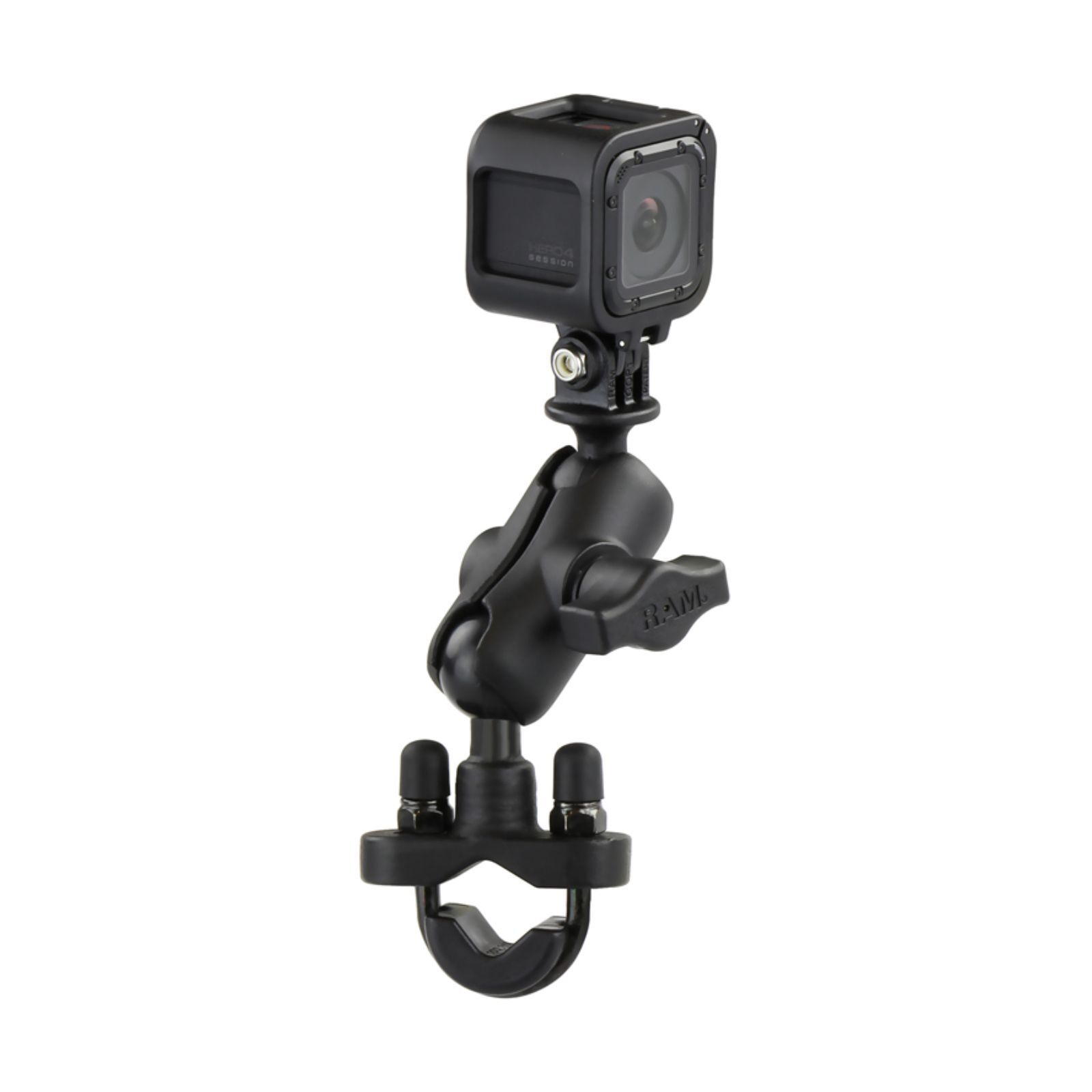

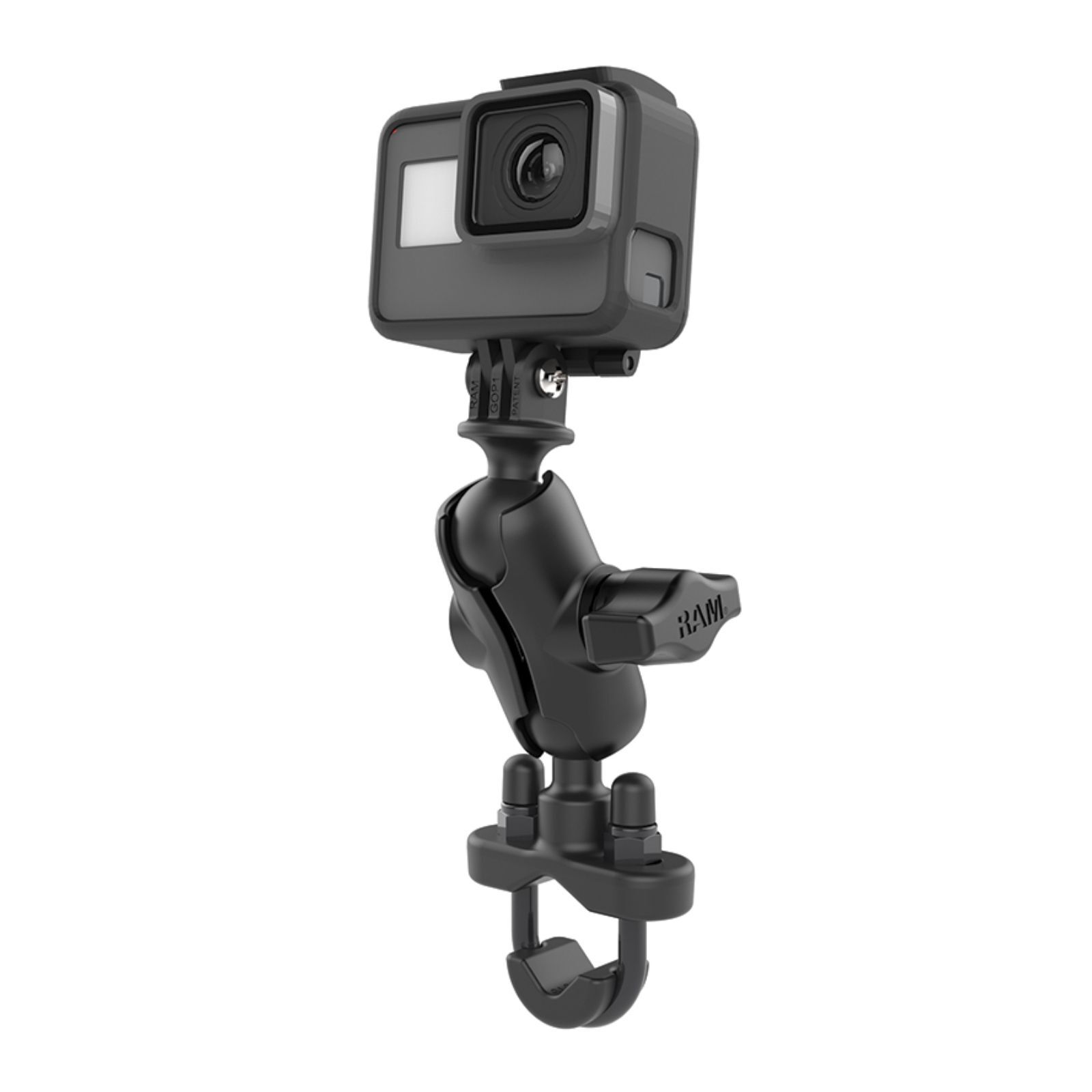

The RAM-B-149Z-A-GOP1 consists of a zinc coated u-bolt base, SHORT size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5".

Specifications:

    CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
    SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
    BALL SIZE: B Size (1", 25.4mm)

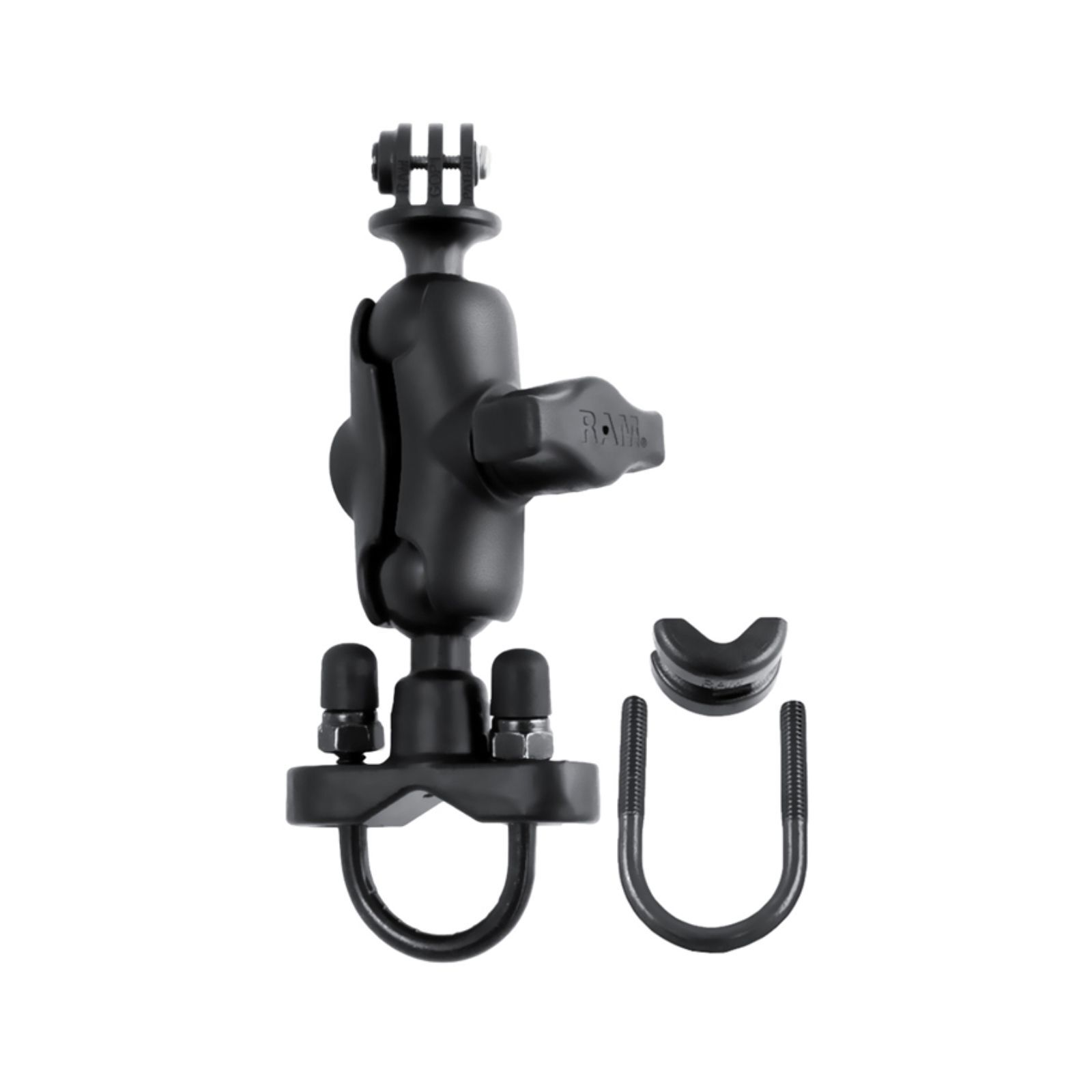

Hardware Included:

    x1 1/4"-20 U-Bolt for .5" - 1" Rails
    x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
    x2 1/4"-20 Nylock Nuts
    x2 Rubber Caps
    x1 U-Bolt Spacer
