Ram X-Grip Phone Holder With Motorcycle Fork Stem Base

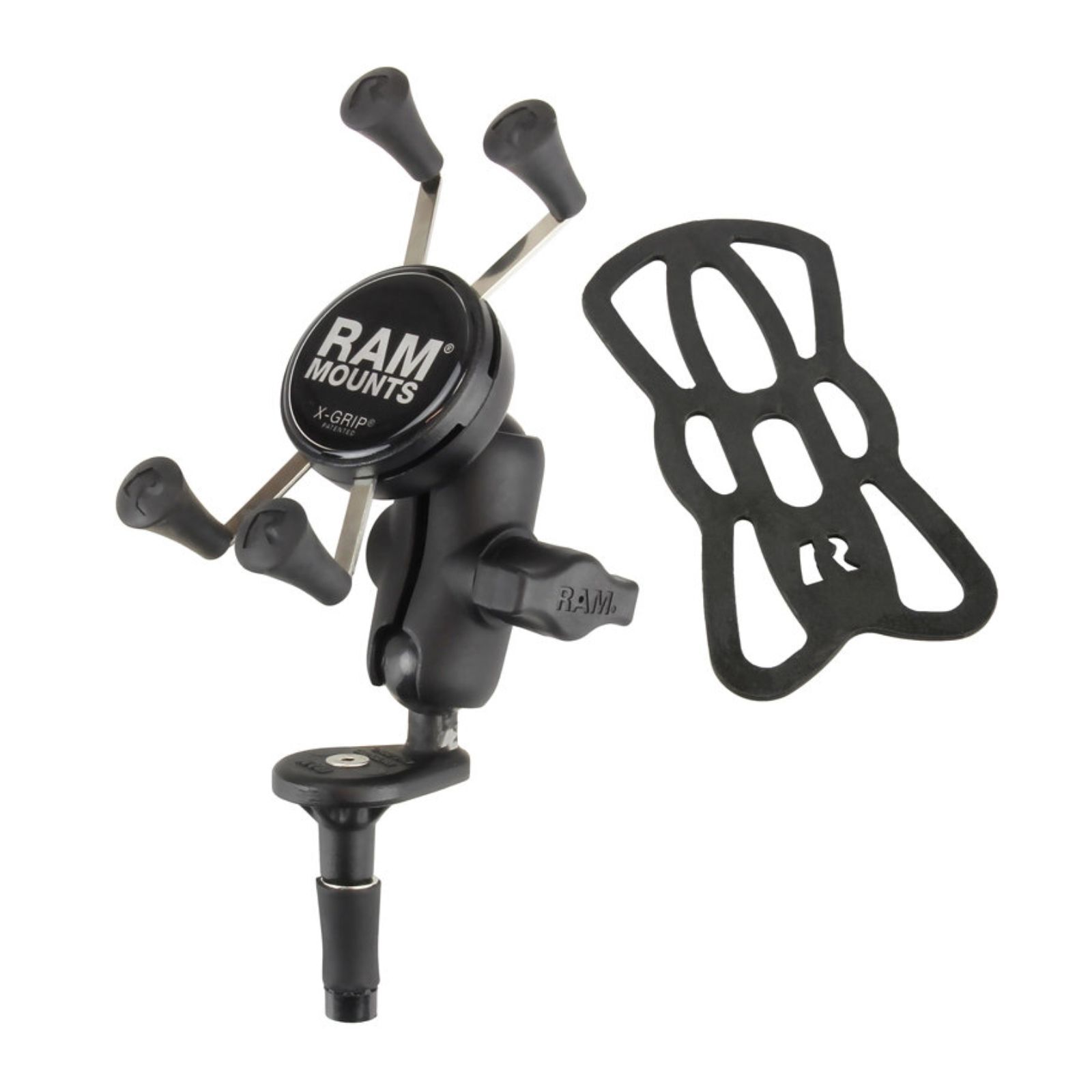

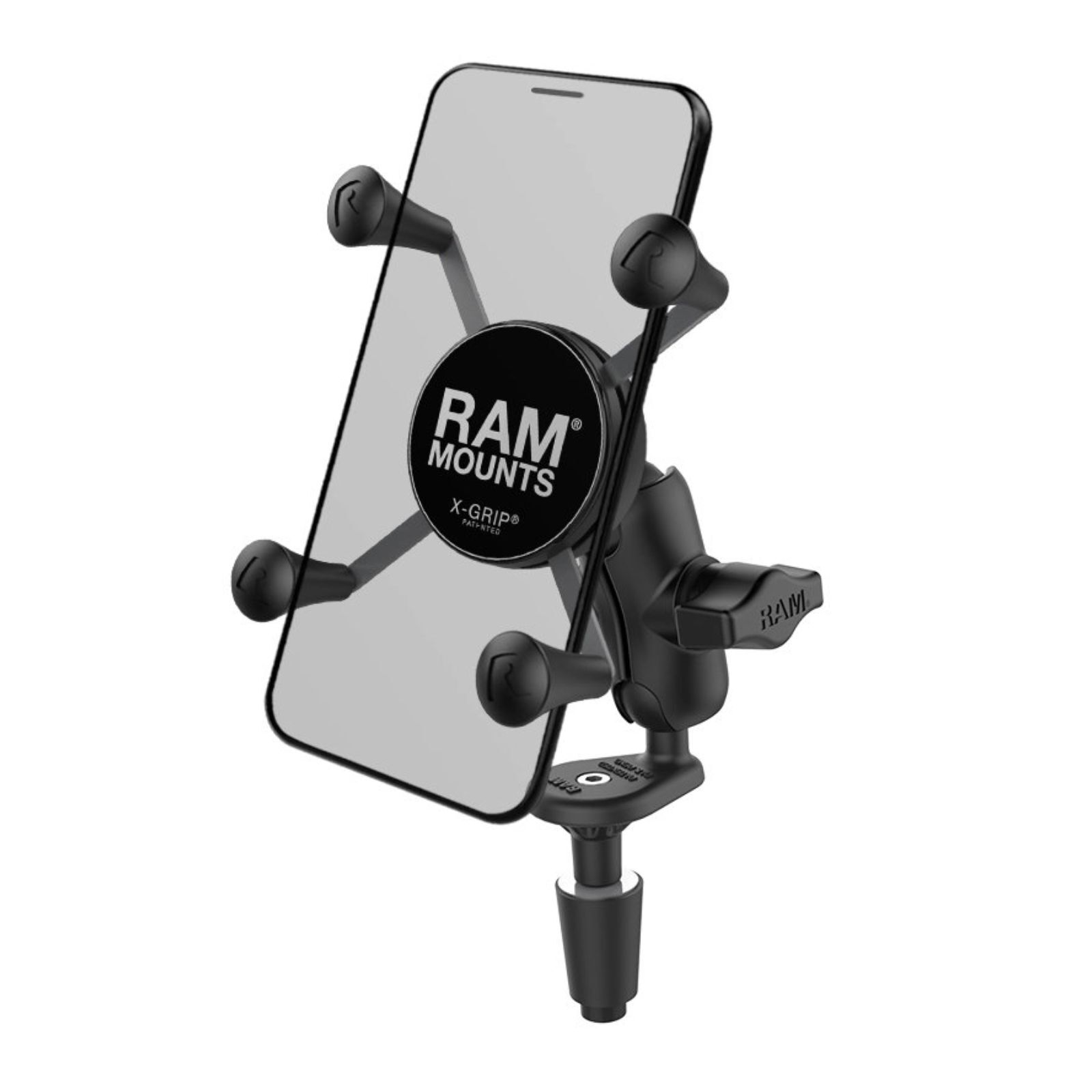

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN7U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM® X-Grip® phone holder. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.87" to 3.25" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allow for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

Features:

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
Specifications:

CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
HOLDER DIMENSIONS: Width Range: 1.875" (47.6mm) - 3.25" (82.5mm), Depth Range: 0.875" (22.2mm) max
SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
BALL SIZE: B Size (1", 25.4mm)
Assembly Hardware Included:

x1 Optional Tether
x1 Glue Tube for Rubber Caps
x1 Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
x1 M5 x 60mm Machine Screw
x1 Steel Washer Set
x1 Nut Pocket Washer Set
x1 Brass Nylock Nut
