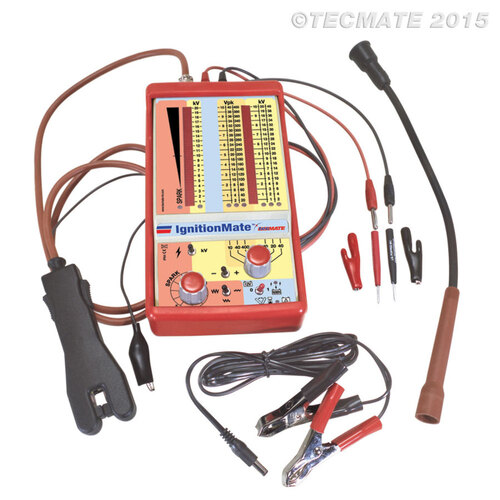

TecMate IgnitionMate - Diagnostic Tool (includes TM-99) - Same as TS90

The dual-display peak-voltage ignition tester makes trouble-shooting ignition problems easier in a V twin or multi-cylinder engines
It can even compare ignition signals of two different engines!

IgnitionMate DUO has been specially designed to measure and dynamically display both primary and secondary ignition signals on bright LED bargraph displays.


Includes Probulator Kit -Backprobe kit with unique scoop design to fit into cable side of electrical system terminals. (TM99)

The application of this versatile tool is based on two basic points:

1. Ignition systems have the same basic components with signals measured being generally similar in nature and magnitude.
2. No disassembling of ignition components are required. This avoids accidentally introducing, or correcting, poor contacts in the system, which may further confuse and delay resolution of unidentified problems


Works on different types of ignition systems (AC-CDI, DC-CDI, transistor, magneto, coil & ‘points’)

Two signals from the same cylinder can be compared simultaneously, including:

• Secondary high tension / peak volts – 10, 20, 40 kV scales – use the caliper to measure high voltage between the ignition coil and the sparkplug.
• SPARK current – measure the consistency of the high voltage spark current signal and find / see misfires.
• Primary low tension / peak volts – 10, 40 or 400Vpk scales – use the RED & BLACK silicon tester cables to measure primary signals between the ICU and the power supply (battery or charge coil), timing pick-up (pulse coil or hall sensor), ignition coil and switches (key, emergency stop, footstand, throttle).

The power-sports vehicle industry’s most recommended problem-solving ignition trouble-shooting tool
