DENALI 2.0 D4 TRIOPTIC™ LED LIGHT KIT - DATADIM™ TECHNOLOGY

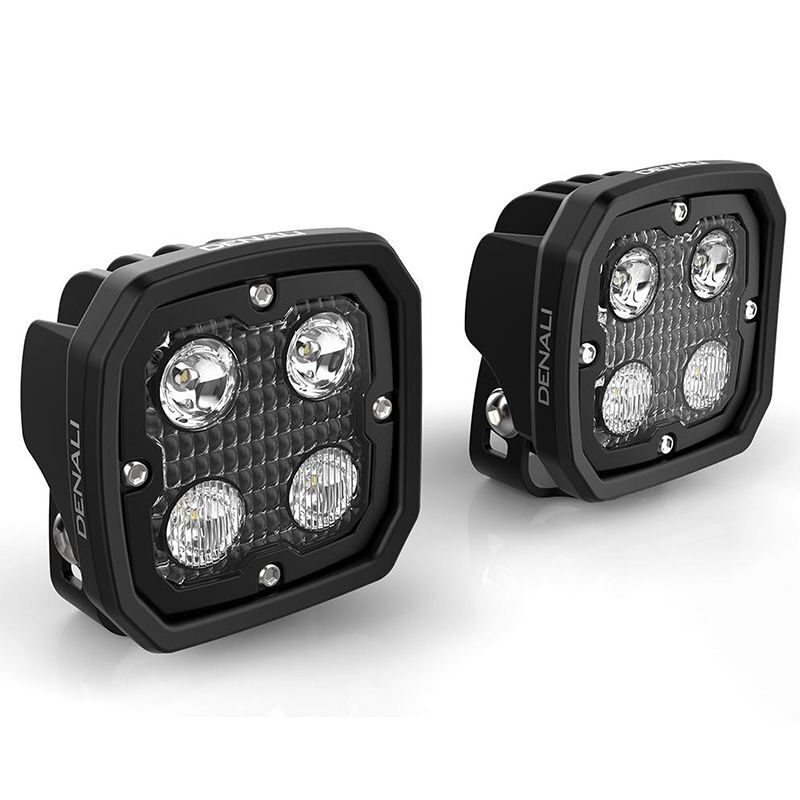

DENALI 2.0 D4 TriOptic™ LED Light Kit

Kit includes: 2x D4 LED Light Pods, True- Hybrid™ Lenses, HotSwap™ Wire Harness, DrySeal™ Switch and Mounting Hardware!

Note: This kit may require the use of additional components for legal road use on particular late model KTM motorcycles. Please check your individual motorcycle requirements.

DNL.D4.10000

Denali 2.0 Light Kits are brighter, more robust, and a lot more versatile. The all-new Cree High-Intensity 10 watt LED's are focused through our TriOptic™ Lens System to give you three unique beam patterns in one kit. Equipped with DataDim™ Technology and a modular HotSwap™ wiring harness, the lights can be upgraded in seconds to switch between half and full intensity with your vehicle's original high beam switch. Our DrySeal™ submersible waterproof construction and Impact PC™ Bezels create super durable light and switch housings that can withstand the most extreme environments without giving up.

Simply put; the DENALI D4 is a beast. The D4 packs the punch of 8760 lumens in a pair of aggressively styled housings. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super-wide close-range flood and a piercing spot beam in one housing. The included pair of spot lenses throws a massive beam of light 800 feet and carries an official E-Mark certification.

• LEDs: (8x) 10 Watt Cree XPL HI
• Power Draw: 6.6 amps
• Beam Distance (Spot): 800 ft
• Beam Width (Spot): 110 ft
• Raw Lumens: 8760
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC
• Pod Size: 3.9in Square x 2.6in Deep

Kit Contents:

1. x2 - LED Light Pod
2. x2 - M8 Mounting Hardware
3. x2 - True-Hybrid™ Lens (installed)
4. x2 - E-Mark Certified Spot Lens
5. x1 - HotSwap™ Single-Intensity Wiring Harness
6. x1 - DrySeal™ On-Off Switch
7. x1 - 7/8" Handlebar Switch Mount
8. x1 - 1" Handlebar Switch Mount
9. x2 - Self Tapping Screw
10. x1 - Adhesive Pad
11. x4 - Zip Tie
12. x1 - Instruction Manual

Tools Required: 13mm Wrench, 5mm Allen Key, Phillips Head Screw Driver, Test Light, Heat Gun.
