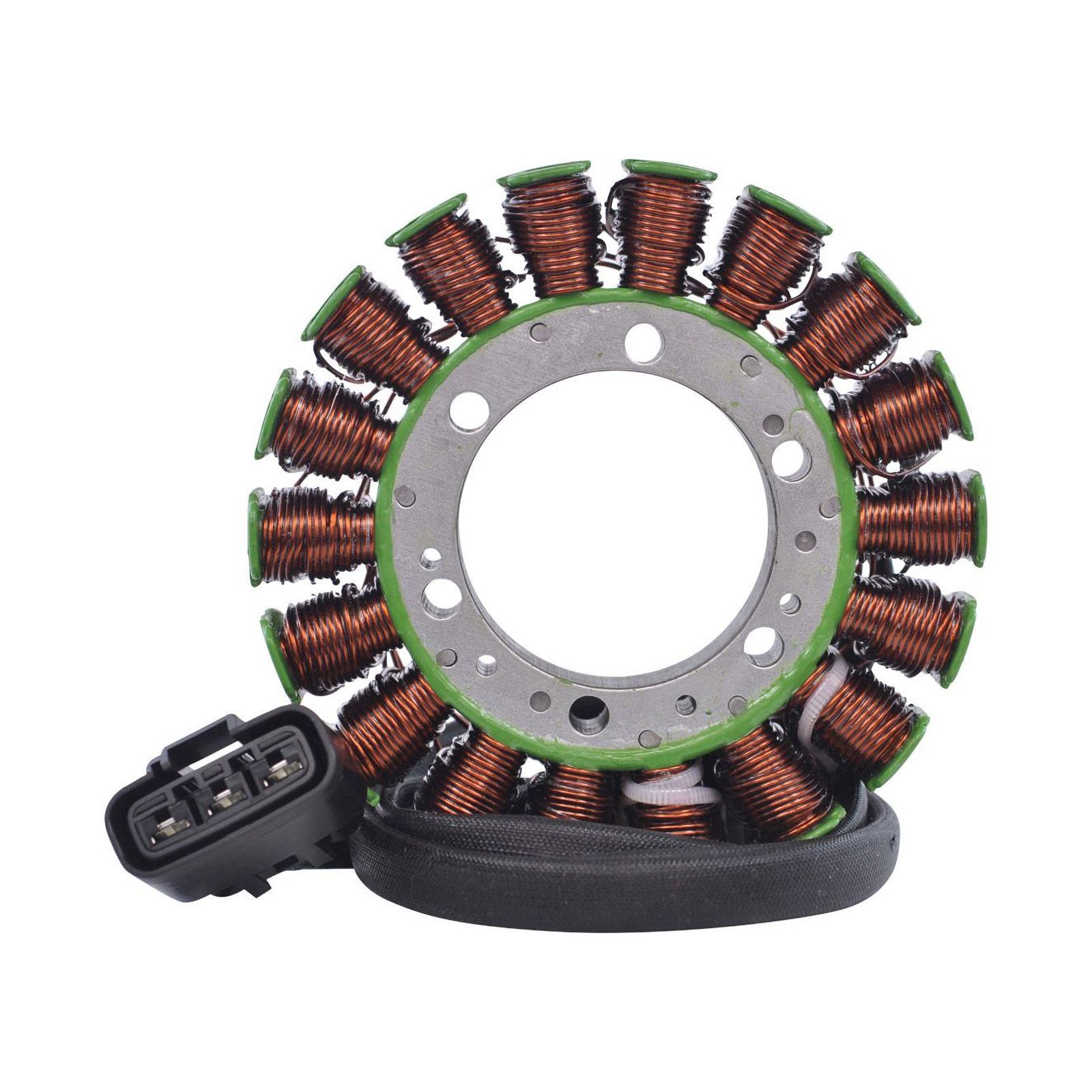

STATOR TRI ROCKET III 2005-2017 (RM01392S)

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All product shipped are tested

Wire resistance:

• Alternator: Black between each Black = 0.04 ohms +/- 20%

Dimension:

• Interior diameter = 54 mm
• Exterior diameter = 125 mm
• Thickness = 24 mm

Other specification:

• Number of wires = 3
• Number of terminals = 3

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
