Swing Arm Linkage Bearing Kit

Need Extras?

Action Grease - White+PTFE 100GRM Tube (74116)

$13.95

Add this

Calculate Shipping

52227 Bearing Steel Hardened and Precision Ground

Description

Needle Bearings - 52100 bearing steel ARC61-65 heat treated ST13 steel shell
Bushing - Case Hardened and plated to prevent wear and corrosion
All Balls linkage kits include the lower shock bearing, but not the upper shock bearing.

WARNING - This is a Swing Arm Linkage kit. It only contains the bearings needed for the LINKAGE. It does not have the bearings for the SWING ARM. If you need bearings for the swing arm you will also need to purchase a SWING ARM BEARING KIT

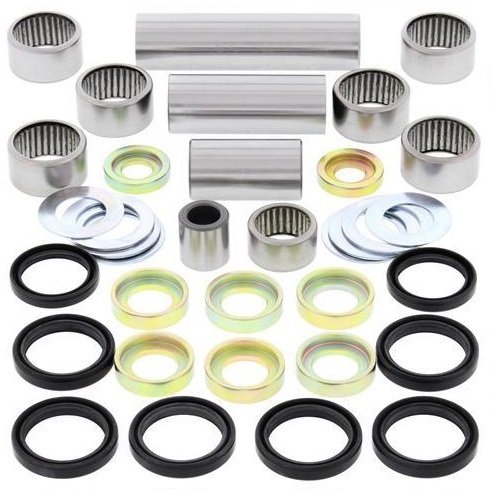

Specifications

6 x Washer (40-6070)
2 x Washer (40-6061)
6 x Seal (40-4174) 21mm ID x 25mm OD x 4mm L
2 x Seal (40-4012) 23mm ID x 31mm OD x 4.8mm L
1 x Needle Bearing (40-3020) "FULL COMPLEMENT" 16mm ID x 22mm OD x 12mm L
6 x Needle Bearing (40-3011) "FULL COMPLEMENT" 20mm ID x 26mm OD x 14mm L
1 x Needle Bearing Shaft (40-2425) 13mm ID x 16mm OD x 17.5mm L
1 x Needle Bearing Shaft (40-2436) 14mm ID x 20mm OD x 36mm L
1 x Needle Bearing Shaft (40-2437) 14mm ID x 20mm OD x 77mm L
1 x Needle Bearing Shaft (40-2438) 14mm ID x 20mm OD x 55.2mm L
6 x Bushing (40-1165) 14mm ID x 24mm OD x 5.8mm L
2 x Bushing (40-1149) 10mm ID x 21.7mm OD x 4.2mm L
