SKU: 28-1045

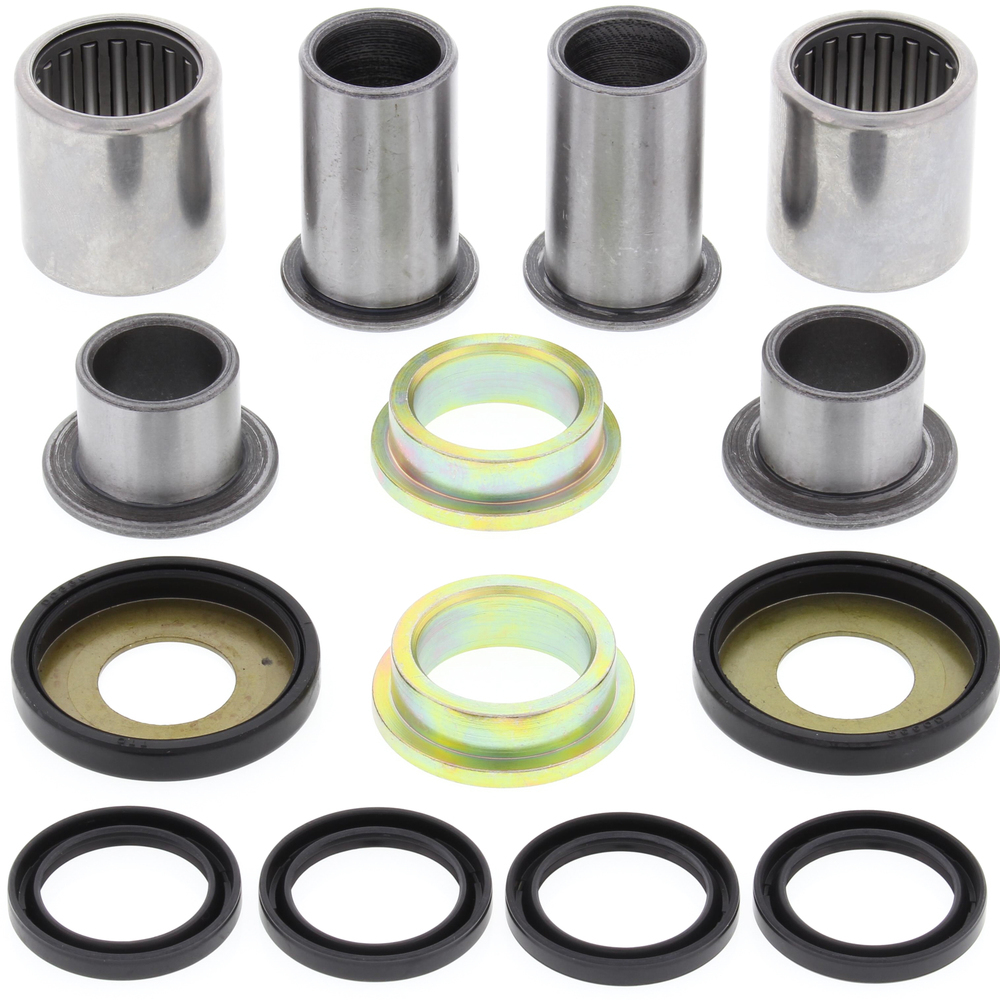

Swing Arm Bearing Kit
Description
- Hardened and precision ground
- 52100 bearing steel ARC61-65 heat treated ST13 steel shell
- Case Hardened and plated to prevent wear and corrosion
POM composite washer bearings replace thrust needle washers for superior resistance to water and dirt and increased service life
Specifications
4 x Seal (40-4058) 21.5mm ID x 29mm OD x 3.5mm L
2 x Seal (40-4054) 17.5mm ID x 40mm OD x 5.5mm L
2 x Needle Bearing (40-3006) 22mm ID x 29mm OD x 30mm L
2 x Needle Bearing Shaft (40-2154) 17mm ID x 22mm OD x 38.5mm L
2 x Needle Bearing Shaft (40-2136) 17mm ID x 22mm OD x 18.5mm L
2 x Bushing (40-1031) 22mm ID x 29mm OD x 10mm L
2 x Seal (40-4054) 17.5mm ID x 40mm OD x 5.5mm L
2 x Needle Bearing (40-3006) 22mm ID x 29mm OD x 30mm L
2 x Needle Bearing Shaft (40-2154) 17mm ID x 22mm OD x 38.5mm L
2 x Needle Bearing Shaft (40-2136) 17mm ID x 22mm OD x 18.5mm L
2 x Bushing (40-1031) 22mm ID x 29mm OD x 10mm L
| SKU | 28-1045 |
| Brand | All Balls Racing |
| Shipping Weight | 0.0100kg |
| Shipping Width | 0.050m |
| Shipping Height | 0.050m |
