SKU: 28-1047
Swing Arm Bearing Kit
Description
- Hardened and precision ground
- 52100 bearing steel ARC61-65 heat treated ST13 steel shell
- Case Hardened and plated to prevent wear and corrosion
POM composite washer bearings replace thrust needle washers for superior resistance to water and dirt and increased service life

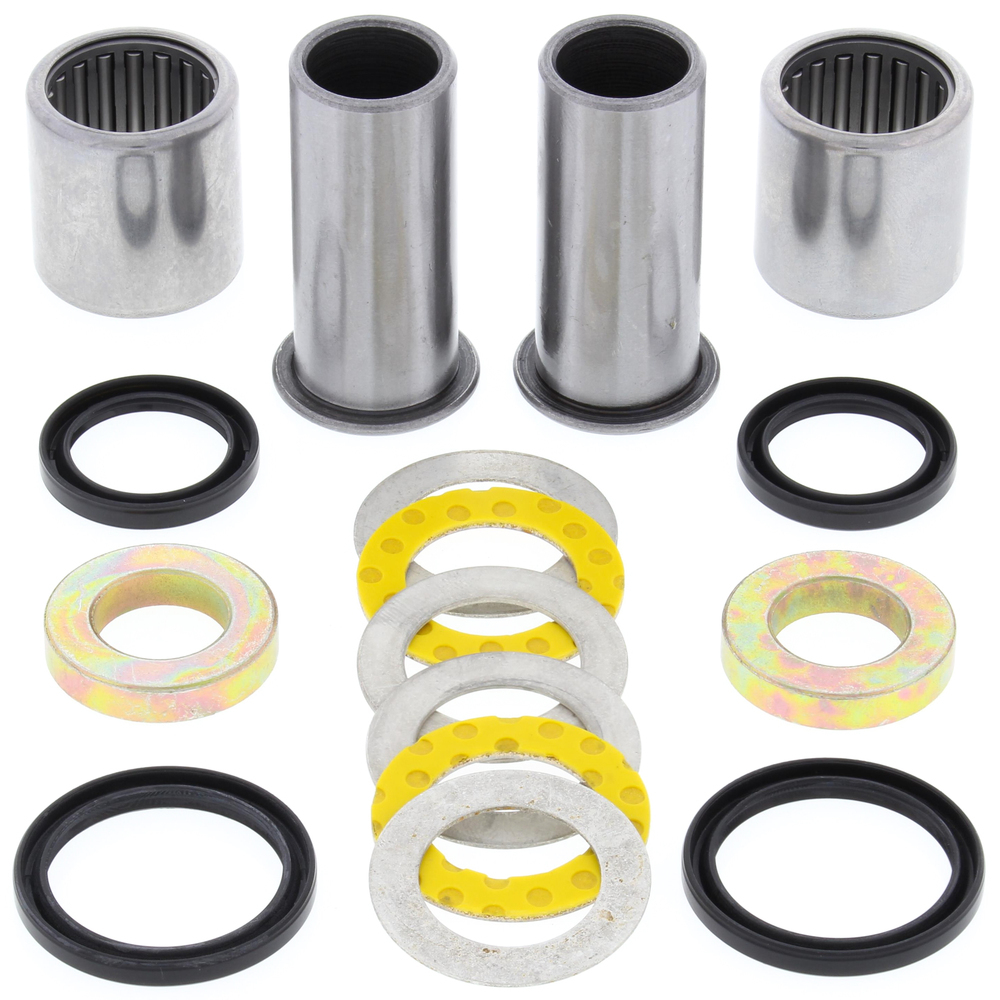

Specifications
2 x Thrust Bearing (40-7004) 22mm ID x 34.5mm OD x 2mm L
4 x Washer (40-6050)
2 x Seal (40-4058) 21mm ID x 29mm OD x 3.5mm L
2 x Seal (40-4065) 29mm ID x 37mm OD x 4mm L
2 x Needle Bearing (40-3006) "CAGE TYPE" 22mm ID x 29mm OD x 30mm L
2 x Needle Bearing Shaft (40-2147) 17mm ID x 22mm OD x 52mm L
2 x Bushing (40-1017) 17mm ID x 30mm OD x 06mm L
4 x Washer (40-6050)
2 x Seal (40-4058) 21mm ID x 29mm OD x 3.5mm L
2 x Seal (40-4065) 29mm ID x 37mm OD x 4mm L
2 x Needle Bearing (40-3006) "CAGE TYPE" 22mm ID x 29mm OD x 30mm L
2 x Needle Bearing Shaft (40-2147) 17mm ID x 22mm OD x 52mm L
2 x Bushing (40-1017) 17mm ID x 30mm OD x 06mm L
| SKU | 28-1047 |
| Brand | All Balls Racing |
| Shipping Weight | 0.0100kg |
| Shipping Width | 0.050m |
| Shipping Height | 0.050m |
