SKU: 18-5008

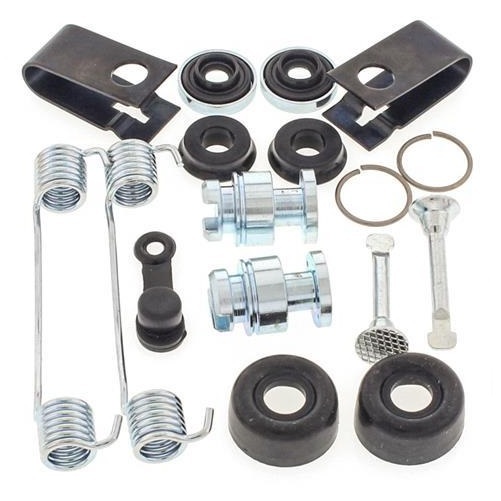

Front ATV Wheel Cylinder Rebuild kit 18-5008
Description
- Direct replacement for OEM part
- Includes basic components needed for minor rebuild
- Includes springs, dust boots, snap rings and pistons
Specifications
Snap Ring (13-1414) x2
Spring (13-4011) x2 = 7.8mm ID
Spring (13-4003) x2 = 77.9mm L
Master Cylinder Piston (13-3027) x2 = 23.9mm L x 16mm W
Needle Bearing Shaft (13-3024) x2 = 34.7mm L x 3.6mm W
Boot (13-2021) x2 = 17.5mm ID x 23.5mm OD
Boot (13-2005) x1 = 4.5mm ID x 9mm OD
Seal (13-2019) x2 = 5.5mm ID x 17.8mm OD
Cup Seal (13-1025) x2 = 6.3mm ID x 17mm OD
Spring (13-4011) x2 = 7.8mm ID
Spring (13-4003) x2 = 77.9mm L
Master Cylinder Piston (13-3027) x2 = 23.9mm L x 16mm W
Needle Bearing Shaft (13-3024) x2 = 34.7mm L x 3.6mm W
Boot (13-2021) x2 = 17.5mm ID x 23.5mm OD
Boot (13-2005) x1 = 4.5mm ID x 9mm OD
Seal (13-2019) x2 = 5.5mm ID x 17.8mm OD
Cup Seal (13-1025) x2 = 6.3mm ID x 17mm OD
| SKU | 18-5008 |
| Model # | 18-5008 |
| Brand | All Balls Racing |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
