SKU: 18-6011
Clutch Slave Cylinder Rebuild 18-6011
Description

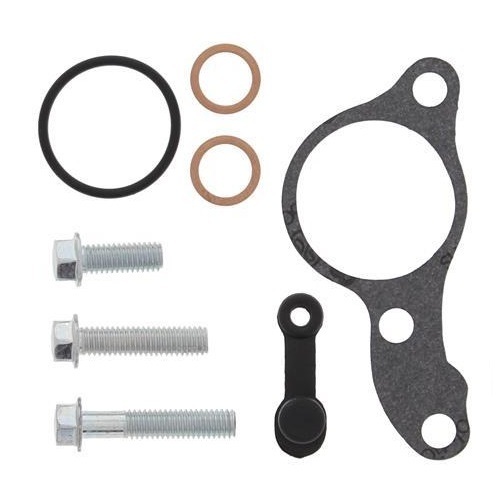

Kits will contain all of the necessary components to rebuild your Clutch Slave components. As seen in the picture. All components are OEM size, fit and quality.
Specifications
Clutch Release Gasket (AB816536) x1 = 31.4mm ID
Screw (99-4029) x1 = 21.2mm L x 5.8mm W
Screw (99-4006) x1 = 30.3mm L x 6mm W
Screw (99-4028) x1 = 35.2mm L x 5.9mm W
O'Ring (32-1837) x1 = 23.7mm ID x 27.8mm OD
Washer (17-2002) x2 = 10.3mm ID x 13.9mm OD
Seal Cover (13-2005) x1 = 4.5mm ID x 9mm OD
Screw (99-4029) x1 = 21.2mm L x 5.8mm W
Screw (99-4006) x1 = 30.3mm L x 6mm W
Screw (99-4028) x1 = 35.2mm L x 5.9mm W
O'Ring (32-1837) x1 = 23.7mm ID x 27.8mm OD
Washer (17-2002) x2 = 10.3mm ID x 13.9mm OD
Seal Cover (13-2005) x1 = 4.5mm ID x 9mm OD
| SKU | 18-6011 |
| Model # | 18-6011 |
| Brand | All Balls Racing |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
