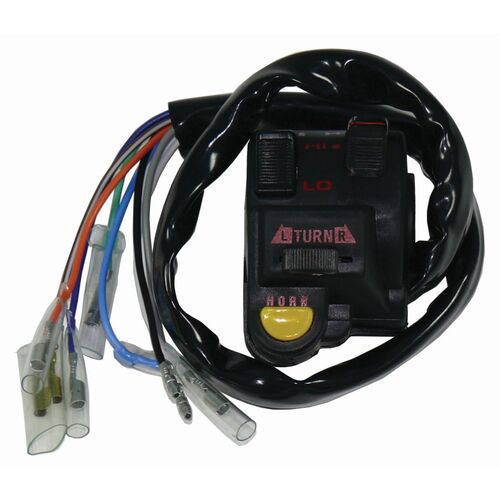

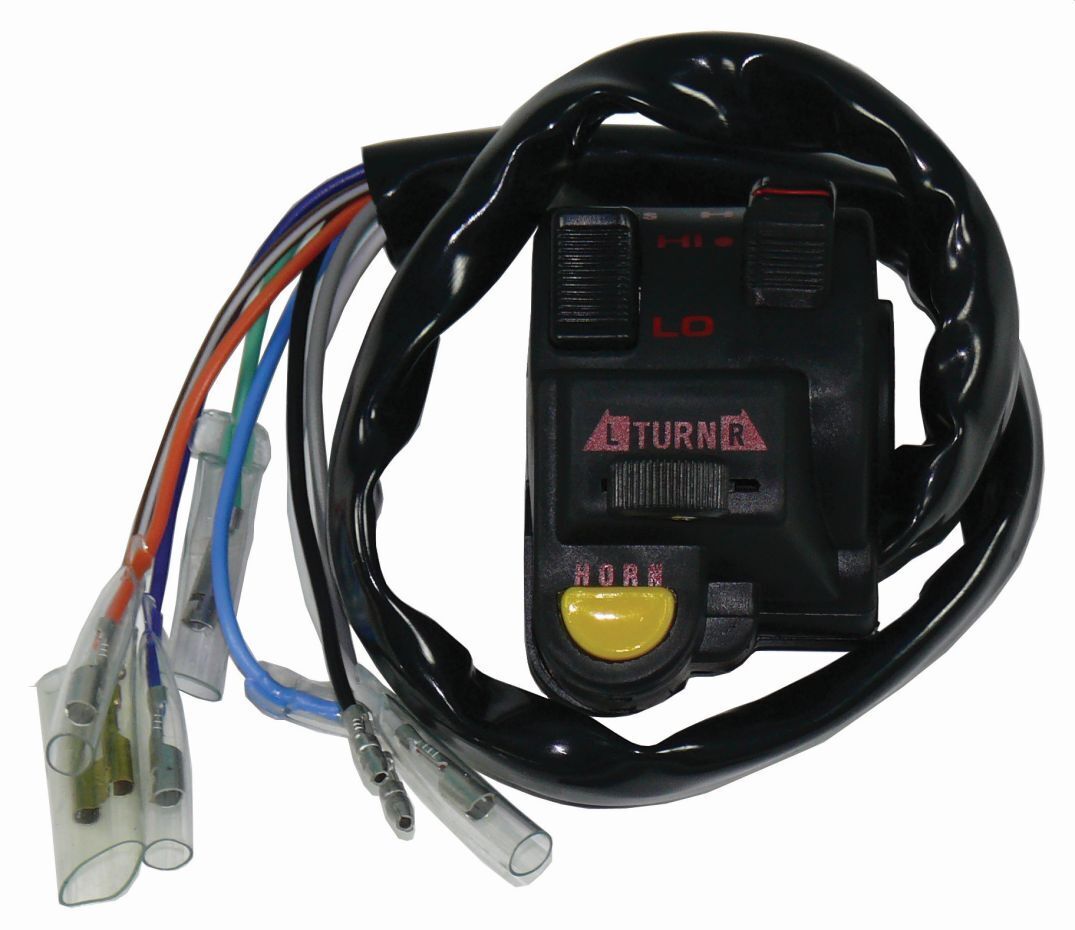

Combination Switch Assembly Honda 1980's XR Style

SKU: CS4

Combination Switch Assembly Honda 1980's XR Style

$58.90
RRP $65.90
SAVE $7.00 (11%)

or 4 payments of $14.72 with Info

Instock Online Only

Need Extras?

Calculate Shipping

Aftermarket Combination Switch for Honda XR Series

Description

  • Aftermarket Version of Combination Switch fitted to XR200R 1980's | XR250R to 1995 | XR600R to 2000
  • Lights | Non Cancelling Indicators | Horn
  • Wiring Diagram Included
  • Fits Standard 22mm | 7/8" Bars
  • Some minor rewiring MAY be required for some applications



Wiring

  • White - Power to H/Lamp
  • Brown/White Trace - Low Beam
  • Dark Blue - High Beam
  • Orange - L/H Flasher
  • Light Blue - R/H Flasher
  • Aqua - Wire from Horn
  • Switch Body is earth
  • If handlebars are painted or rubber mlunted a seperate earth wire may be required

Specifications

SKU CS4
Barcode # 9334437036501
Brand MCS
Shipping Weight 0.2155kg
Shipping Width 0.120m
Shipping Height 0.050m
