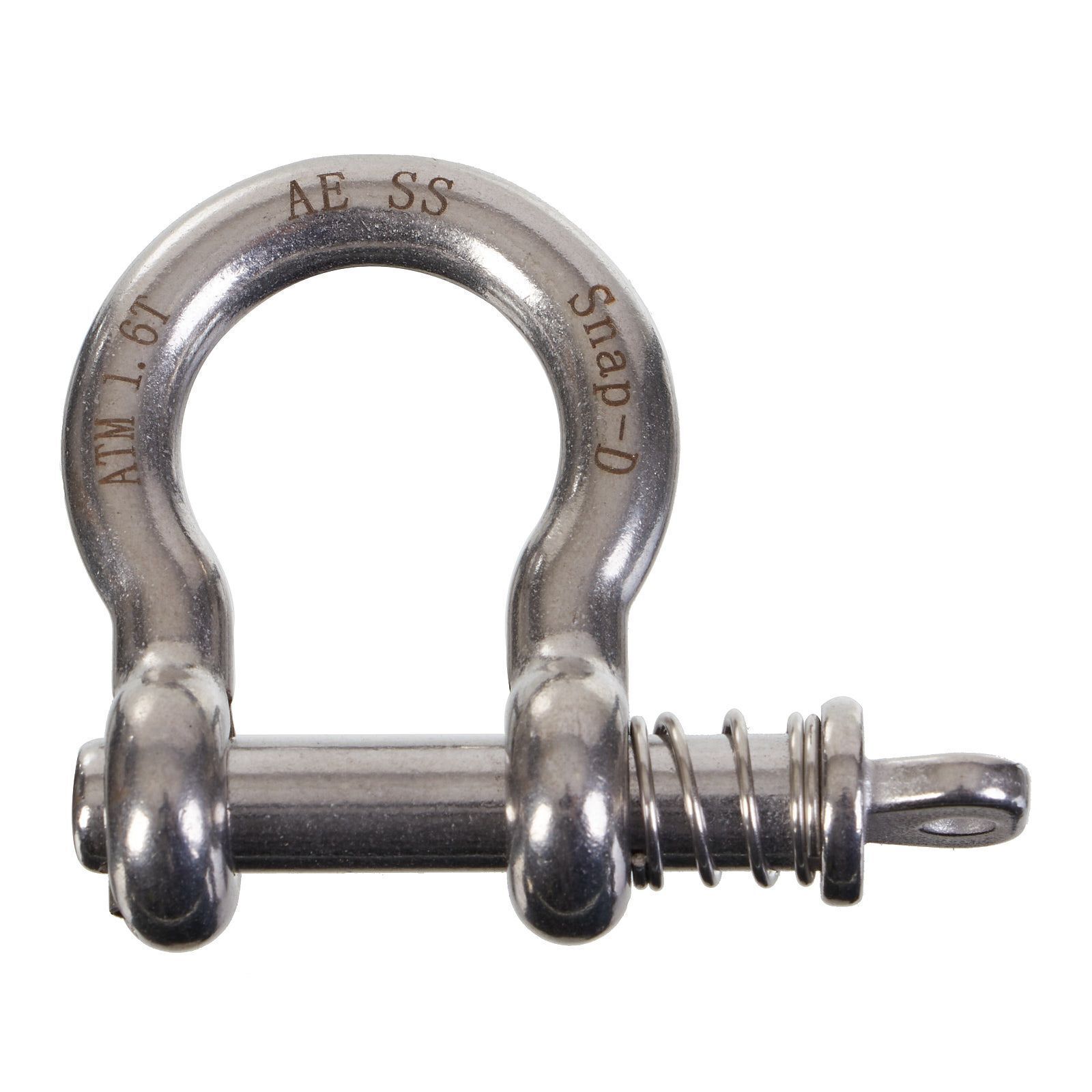

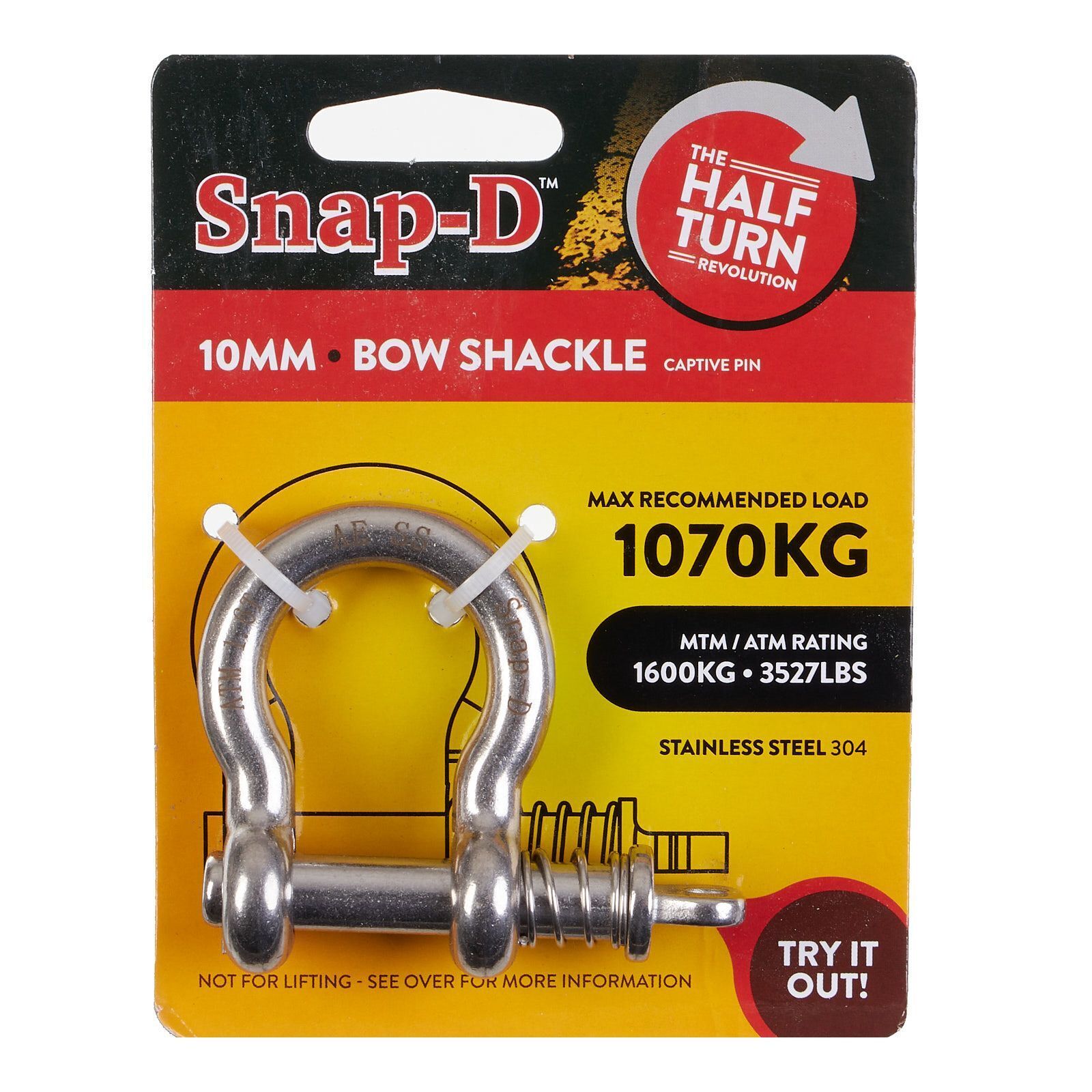

Snap-D 10mm Bow Shackle Stainless Steel For Towing

THE 10MM BOW SHACKLE IS IDEAL FOR SMALL TO MEDIUM-SIZED TRAILERS.

    304 Stainless Steel
    1600kg Aggregate Trailer Mass (ATM/MTM)
    Captive pin

Ideal for single axle, 6x4 trailers, or 3-6 boats.

Typically single axle trailer, between 400-1070kg. With a 10mm main pin and 1600kg towing mass, this shackle is your all-rounder. Ideal for boat or builder trailers, the bow shackle is easy to hold onto and has heaps of room for chain or Nylon rope options.

    Allow 12-13mm for the roll pin to fit through the tow bar hole.
    Designed in NZ by a kiwi, manufactured in China under license.
    Snap-D is a New Zealand-owned company.
    All shackles are compliant with AS2741 & NZS5467 standards

Please note: By law the combined (ATM) rating of the shackle or shackle's being used must be 1.5 times greater than the total weight of the trailer being towed. For your convenience, we have included a maximum recommended towing mass which is the ATM divided by 1.5, please ensure that the total mass of your load does not exceed our maximum recommended towing mass.

MTM: Maximum towing mass.

ATM: Aggregate trailer mass.
